Radius / Fillet Gauge (Remix)

Motivation

I printed and started putting together a great Radius / Fillet Gauge tool by JohnMartin and found that I can improve the way how side pieces (panels) are mounted together improving easiness to use and longevity of the tool.

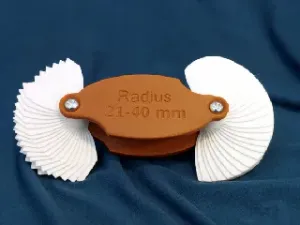

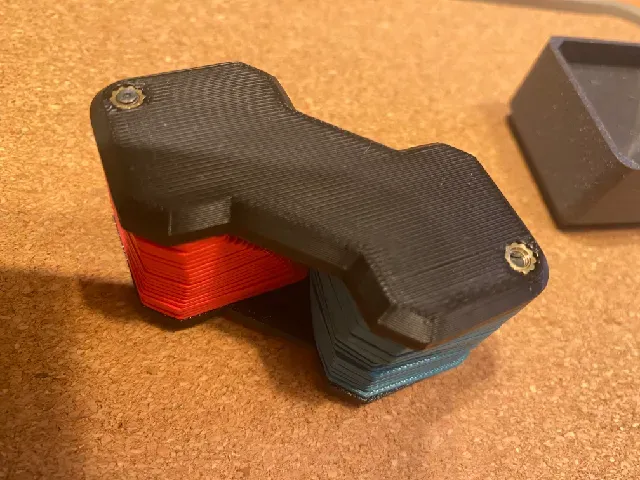

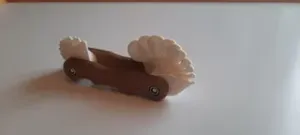

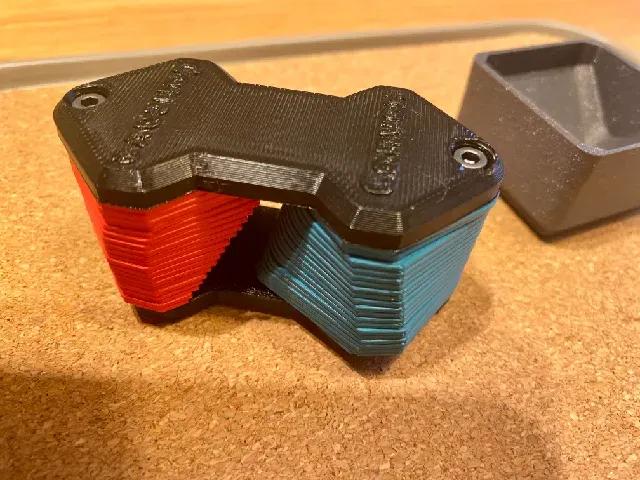

I redrawn the panel and tube for the bolt adding an M3 (5x4mm) heat set insert on one side, therefore allowing to put it all together with 2 x M3 x 30 SCHS / BCHS bolts.

This leads to a less flimsy and more reliable system with (hopefully) better longevity.

BOM

- Printed parts - Side panel for M3 heat-set inserts; - Modded tubes for M3 bolts; - Original gauges - 2 x M3 * 30 BCHS/SCHS self-tapping bolts - 2 x M3 (4 x 5mm) heat-set inserts Side notes

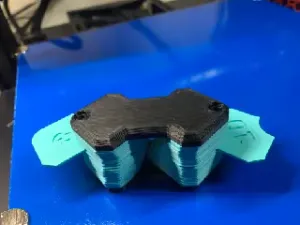

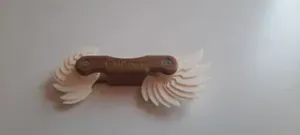

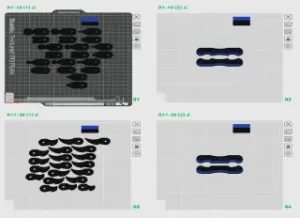

- Radius and Fillet gauges from the original project are added in a ZIP file. - I recommend using Radius/Fillet Gauge with Text by tjdesign and storing it neatly in a Gridfinity style holder by JohnMartin
