MKS Robin Lite Octoprint Smoother Box

Hi everybody,

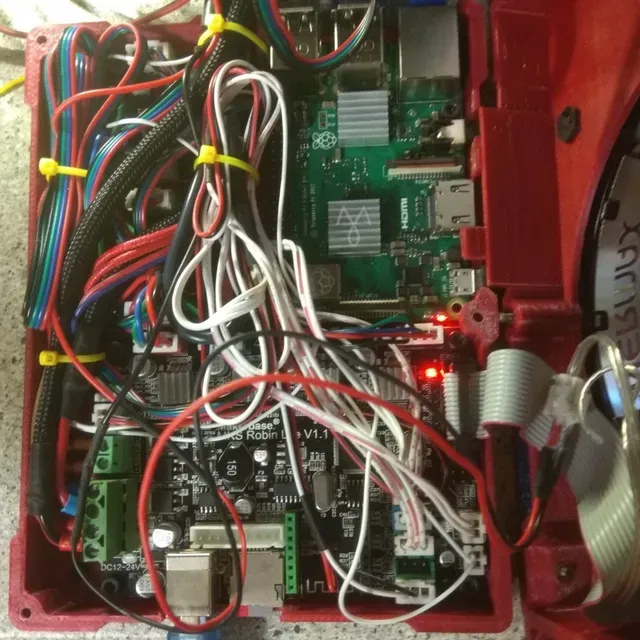

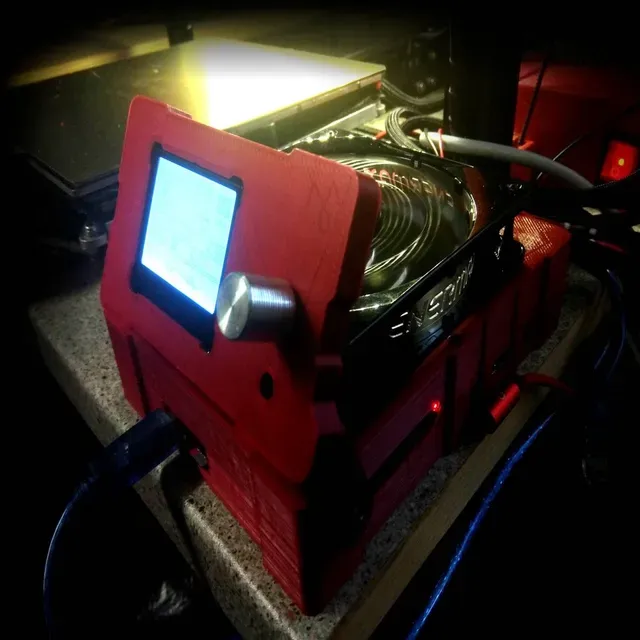

After several months testing the MKS Robin Lite (32 bits board) on one of my printers, I ended with a solution than did not needed to be changed. So it was time to design a convenient case which holds all the boards system properly. After few iterations, I lead to most of the expectations : good cooling, wire/cable management, compact size, strength, in/outs management, adjustable screen (2 options), silent, aesthetics.

That thing is a good home for this hardware :

1x MKS Robin Lite motherboard

1x MKS Mini 12864 Display

1x Raspberry Pi B size (3B+ recommended)

2x MKS TL Smoothers

1x 120mm PC silent Fan

Required hardware :

4x 2mm wide zip ties for cable management

1x M3x20mm plastic screws for the box

4x Silicon rubber dumpers for PC fan (can be replaced by standard fan screws)

To secure the boards :

16x M3x6mm screws (preferabilly screws for plastic)

Options :

A/ Base mount with adjustable screen :

3x M3 screws (type depending of your base material) for the box

1x DIN912 M3x20mm plastic screws for the screen

2x M3 nylon washers (or any other kind) for the screen

1x M3x4.2*6mm (OD-L) bronze insert (can be replaced by a nylstop nut with +5mm M3 screw) for the screen, drive the insert in with the screw, then mount the screen.

B/ 2020 profile mount with detached screen :

2x DIN 912 M4x10mm for the box

2x DIN 912 M4*20mm for the screen

4x M4 Tnuts for the box and the detached screen

Warnings :

- if you don't use plastic screws for the box cover, please tap the mounting holes to accept threaded screws.

- the box mounted screen holder required washers to work properly. One on the screw head, one between the box and the screen holder. If you don't use washers, you get exposed to a bunch of issues : the screw may dig into the plastic, the screw can get loose, the position may be hard to get right or the screen can fall.

I also made a PSU cover for the same printer : https://www.thingiverse.com/thing:3998050

Print Settings

Printer:

Reprap

Rafts: No

Supports:

No

Resolution: any

Infill:

100%

Filament:

Plasti Mladec PLA Pearl red

Notes:
