Octoprint Pi3 V-slot 40mm Adapter for Case (Ender 5 & more)

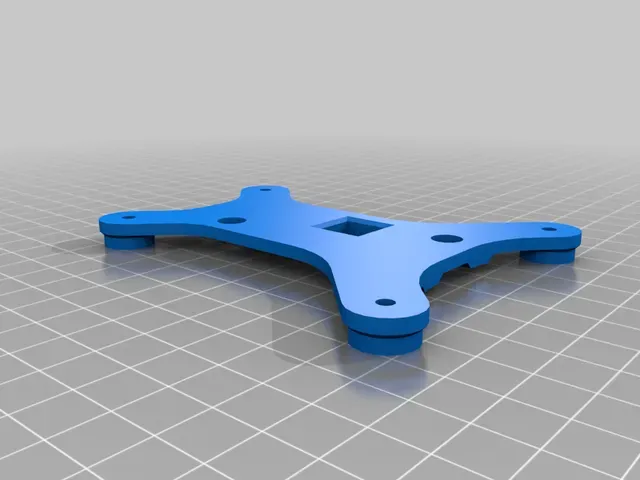

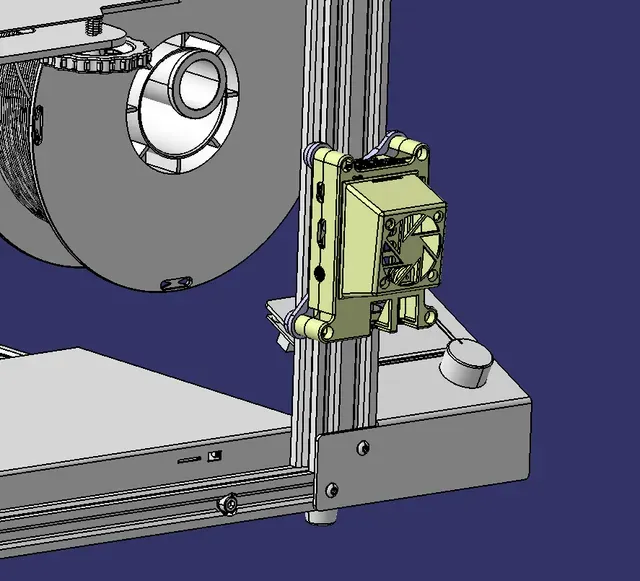

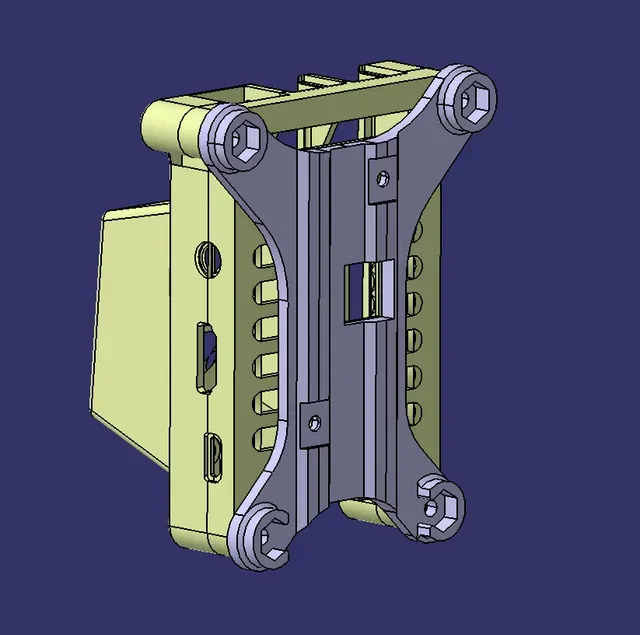

This is an adapter for the Corto76’s “Raspberry Pi 3 case with Noctua 20mm fan“ ( https://www.thingiverse.com/thing:3068580 ), and it’s needed to mount the case on a Vslotted 40mm Frame. I designed this, to mount my Octoprint Pi on the 40mm frame of my Ender 5.

You’ll need:

- The printed parts of the Corto76’s Case (except the Mount)

- 4x M3 Screws

- 4x M3 Nuts

- 2x M4 Hexagon flat socket head screw (for TCEI Version)

- 2x M4 Button head socket screw (for Screw Version)

- 2x m4 V-slot nut

THIS IS A W.I.P. I will update this design and info

Print Settings

Printer Brand:

Creality

Printer: Ender 5

**Rafts:**

No

Supports: No

**Resolution:**

0.2

Infill: 50%

**Filament:** SunLu PLA Gray

Category: 3D Printer Accessories
