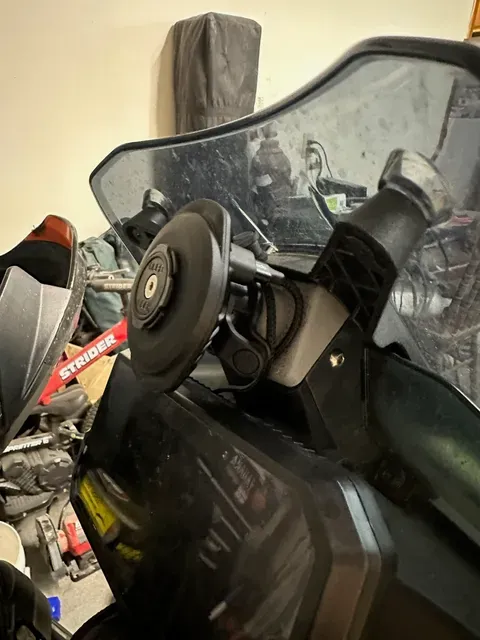

790/890 adventure QuadLock phone mount adapters

Quick mount to adapt the Quadlock phone mounting system to the KTM 790/890 Adv. The mount is angled downwards 5 degrees to better match the angle of the cluster. The long model works well with the vibration damper and a standard motorcycle mount. The short model better accommodates the vibration damper with the wireless charging head. I use this adapter daily with an iPhone 14 Pro Max which has plenty of clearance around the cluster and the top edge of the windscreen in the low position.

Print mount side down with supports on bed only.

Required for install-

(3) M5 nuts (8mm hex)

(2) M5 x 35mm bolts of your head choosing
