THRUSTMASTER : T.16000M Accessories

Description

Technical information for all model files :

- Nozzle size: 0.4 mm

- Layer height: 0.2 mm (Quality)

- For more durability, add :

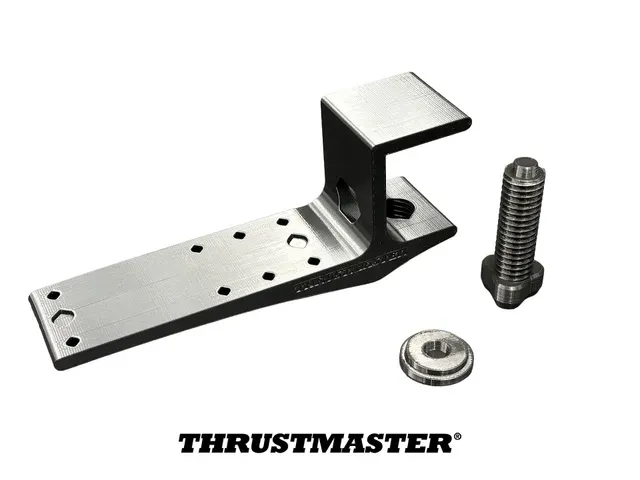

- 6 first and last layers and 4 perimeters to Universal Clamp and addons

- 5 perimeters to screw and head of screw

- Infill : 15%

- Infill : 100% for spare parts

- Materials recommended: PETG

- Support needed on spare parts files

- Printer used for prototyping: Prusa MK4

- Type of bed used for prototyping: smooth

- Screw needed for clamp : M6 (¼ Inch)

Notes :

- All printers have different tolerances, we aimed to make a set of files that works on the maximum number of printers but your mileage may vary.

- Compatible with the following Thustmaster's Joysticks : Products of the TCA pack, T16000, TWCS, Farmstick

Safety tips :

- IMPORTANT : Add an adhesive (rubber, double-sided tape, fixed paste, etc.) to the parts in contact with the table, such as the top of the screw (45mm ray) and the bottom side of the top clamp(56*76mm). Otherwise, the clamp tends to slide. Find the dimensions below

- Customize at your own risks !
