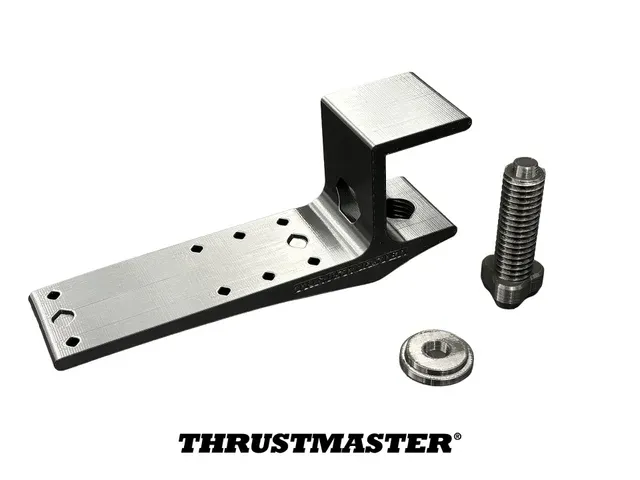

THRUSTMASTER : TCA range Accessories

Technical information for all model files :

- Nozzle size: 0.4 mm

- Layer height: 0.2 mm (Quality)

- For more durability, add :

- 6 first and last layers and 4 perimeters to Universal Clamp and all addons

- 5 perimeters to screw and head of screw

- Infill : 15%

- Materials recommended: PETG

- Printer used for prototyping: Prusa MK4

- Type of bed used for prototyping: smooth

- Screw Needed : M6 (¼ inch)

Notes :

- All printers have different tolerances, we aimed to make a set of files that works on the maximum number of printers but your mileage may vary.

- Compatible with the following Thustmaster's Joysticks : Products of the TCA pack, T16000, TWCS, Farmstick

Safety tips :

- IMPORTANT : Add an adhesive (rubber, double-sided tape, fixed paste, etc.) to the parts in contact with the table, such as the top of the screw (45mm ray) and the bottom side of the top clamp (56*76mm). Otherwise, the clamp tends to slide. Find the dimensions below

- Customize at your own risks !
