UNIVERSAL FILAMENT SPOOL HOLDER

Hi all,

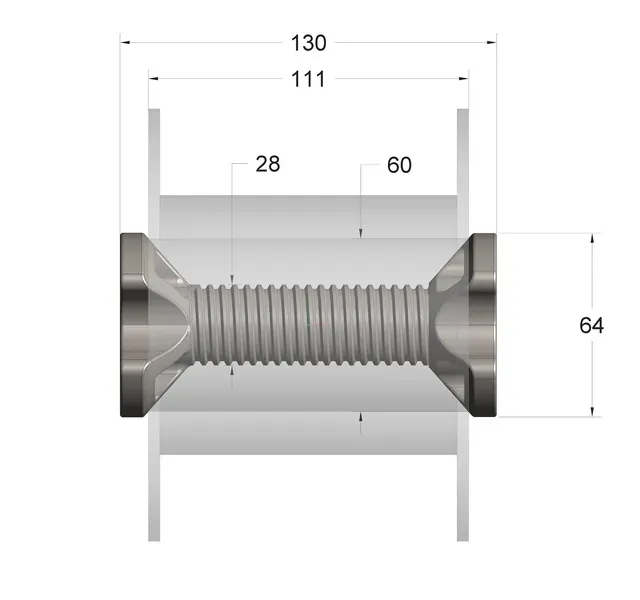

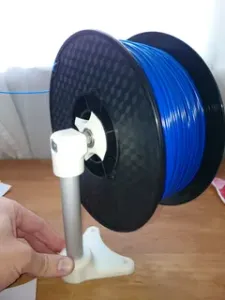

this is my famous Universal Filament Spool Holder from Thingiverse. You can mount filament spools in a wide range. For maximum rated dimensions see attached picture. I tried up to 2.6kg material spools without an issue. For smooth unwinding it uses ball bearings.

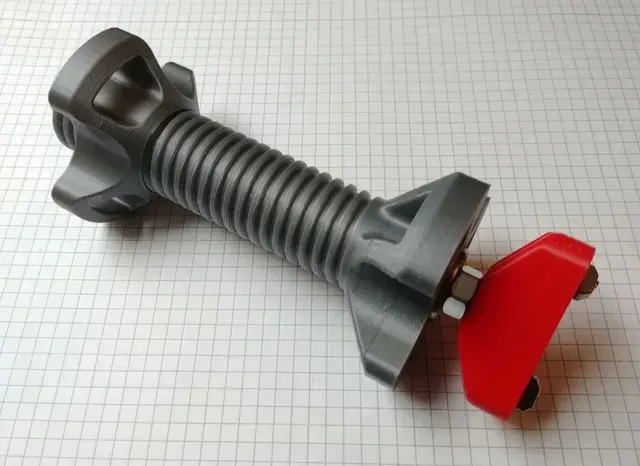

You can adjust the rolling resistance by tightening or loosening the M8 nut at the outer ball bearing.

What you need:

- M8 threaded rod - 2x M8 nut - 2x skate board ball bearing 608ZZ - 8mm (core) - 22mm (outer diameter) - 7mm (width) If you are looking for a mount for 20x20 aluminium profile http://www.thingiverse.com/thing:2122402

or a clip on mount for Anet A8 http://www.thingiverse.com/thing:2068469

You can also find a lot of great remixes and redesigns for all kind of printers here:

https://www.thingiverse.com/thing:2070272/remixes

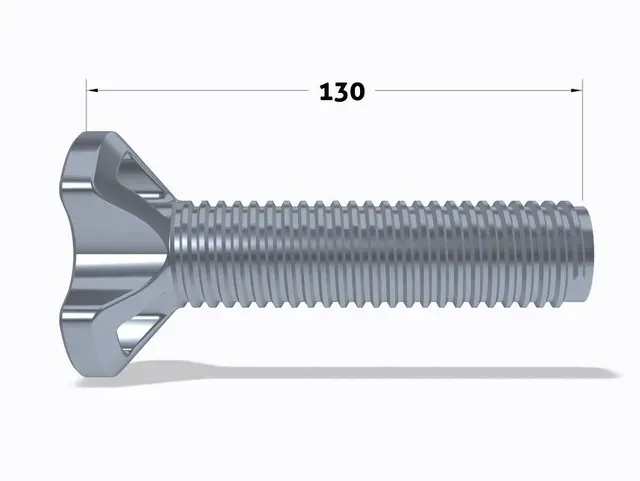

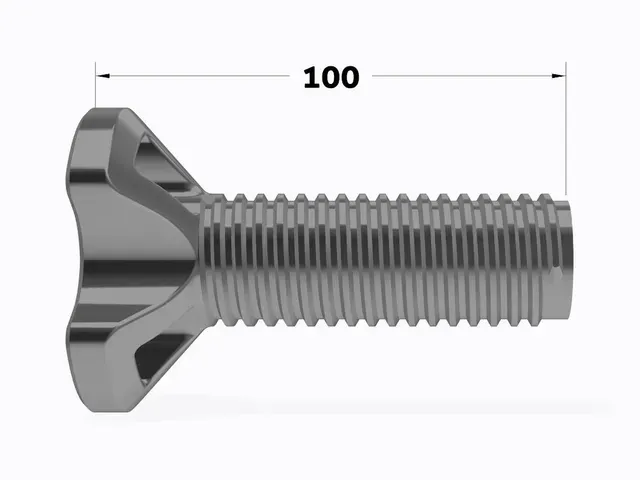

Update 08/12/2020: added long and short variant with improved self centering function of the nut

If you are interested in a more complex but also more practical design that fits spools with larger inner diameters, check out the gen 2 of this spool holder here: https://www.printables.com/model/66440-universal-filament-spool-holder-gen-2
