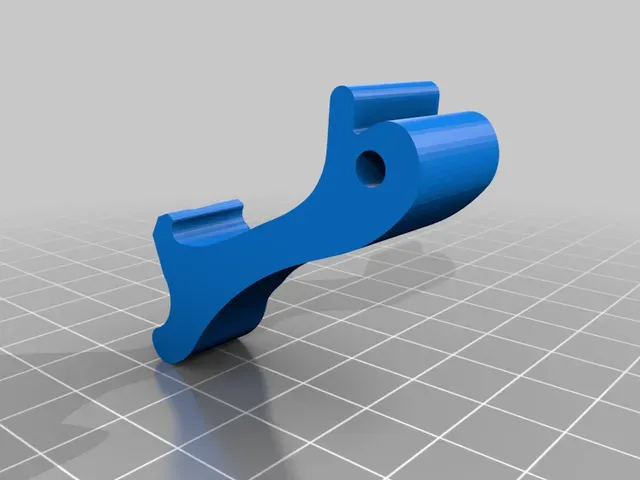

Galilei Extruder , Tap-like CR10 / V6 Hotend

Hotend with

- Extruder based on Galileo (Orbiter 1.5 Gears + HW)

- up to 20mm Motor (Nema 14 36mm)

- CR10 Heatsink (the ones with ECAS)

- PC4-M10 for Extruder

- 40mm Fan

- Single 5015, borrowed from EVA3

- 2 ducts (1mm ofset in Z, depending on Nozzle (accuracy of prints/magnet installation)

- V6 Heatblock/nozzle or MK8

- MGN9H 50mm (nozzle as Z-probe)

- Voron Tap Optical z-sensor

- 4 6x3 N52 Magnets

- Beltpath Cartesian above the rail

Bowden must be a little bit shorter to reduce pressure force

Remixed from a lot of sources:

https://github.com/jon-harper/E34M1

https://www.printables.com/de/model/230690-eva-3-inlet-for-5015-fan-parallel-to-backplate/files

https://github.com/EVA-3D/eva-main

https://github.com/VoronDesign/Voron-Tap

https://github.com/VzBoT3D/Vz-HextrudORT/

https://www.printables.com/de/model/396650-e3d-v6-and-revosix-hotend-mount-hex-nut-version

https://www.printables.com/de/model/200939-eva-3-modular-3d-printer-carriage-platform
