Project JAWA-ČZ KÝVAČKA 250/353.02 - PART No.2 - ENGINE CRANCKCASE + ENGINE COVERS

Hello, here you are the 2nd part of my motorcycle.

Hope the frame you printed without any issues :) https://www.printables.com/cs/model/738743-project-jawa-cz-kyvacka-25035302-part-no1-frame

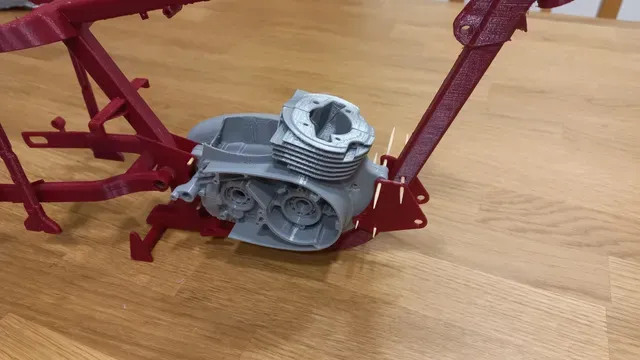

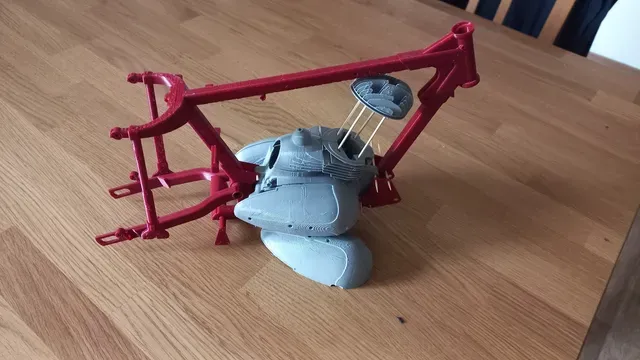

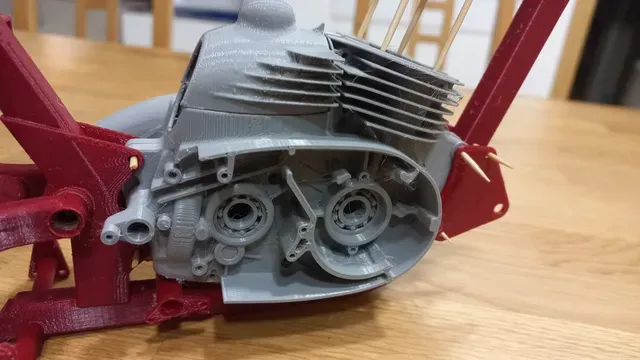

In this case it is engine crankcase, the engine covers and the head. All parts belongs for a solo bike and the bike with sidecar also.

PRINTING INFORMATION

For print I recommend PLA, grey color, 100% infill.

- All parts except right engine cover you can print in 0.2 layer. I recommend 0.15 for better luck. - The right cover must be printed in 0.1 layer . If not it brings a holes in the main shape! - The cylinder head is cut into 2 pieces so the supports are not needed. Other parts needs them - Because there are a lot of cooling ribs this models are very sensitive to correct print settings. I recommend printing at a lower temperature, otherwise the print will be too stringy. If the printed settings are correct the bearings will can move ;)

AFTER PRINT

- Clear all models from supports and string hair - Glue 2pcs of the cylinder head into 1 part. - Store all parts in the box for now to avoid damage. More engine parts will follow in the some next part of my built. ENJOY :)

3rd part is avaliable here: https://www.printables.com/cs/model/766034-project-jawa-cz-kyvacka-25035302-part-no3-front-fo
