Want to buy a physical 3D print of this product? Head to Trajann online store .

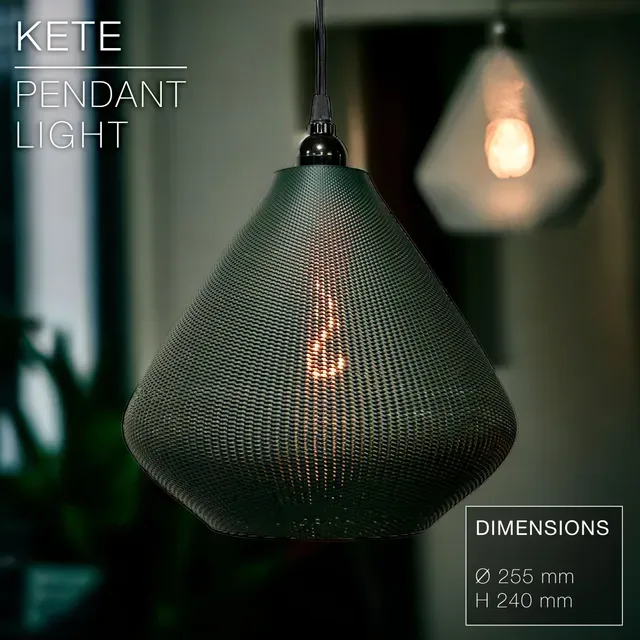

Pushing further my newfound 3D printed wickering technique with this stylish pendant light. It prints very fast and is much stronger than a vase-mode print.

I equipped the dark green version with the IKEA super-size LED light bulb MOLNART. The effect is stunning!

Note that the orange version was the first draft, and the weave is much coarser, which led to printing issues. The final version has a tighter weave that prints beautifully.

Any 3D printer can print it without exceptional print settings and a regular 0.4mm nozzle. (See settings below).

There are 2 sizes available : - a larger one with Ø 255 mm x H 240 mm - a smaller version that can print on PRUSA printers, and is Ø 209 mm x H 215 mm

You can pick between 2 thicknesses for the weave : - 0.5mm weave: fast-print, but can be a bit fragile - 0.9mm weave: for a stronger and cleaner weave

This lamp works with E27 and E26 socket screws.

You can get the power cords from Amazon here: For Europe: E27 cord:   https://amzn.to/3OVrZjK

For the US: E26/E27 cord:   https://amzn.to/3V5VYJB

Happy printing!

DIMENSIONS (XL) | Ø 355 mm x H 355 mm DIMENSIONS (Large) | Ø 255 mm x H 240 mm DIMENSIONS (Small) | Ø 209 mm x H 215 mm

PRINTING | Shade ~2.5h

Bulb socket | E27 or E26

UPDATE (V6 or so…): You can now pick between 2 thicknesses for the weave : - 0.5mm weave: fast-print, but can be a bit fragile - 0.9mm weave: for a stronger and cleaner weave

3D PRINT SETTINGS This shade prints upside-down . (the STL file is already oriented properly) No need for supports, infill or brim.

For BambuLab users, turn on "Arachne" mode in the "Wall Generator" settings. Otherwise Bambu Studio will detect some of the weave layers as empty.

Layer height: 0.2 or 0.3mm/layer (shade in pictures was printed in 0.3mm/layer) Wall line count: 2 Build adhesion type: None. If you have adhesion issues, you can add a 5~6mm brim. Supports: None Infill: None
