Biltema Pegboard Screwdriver Holder - Large

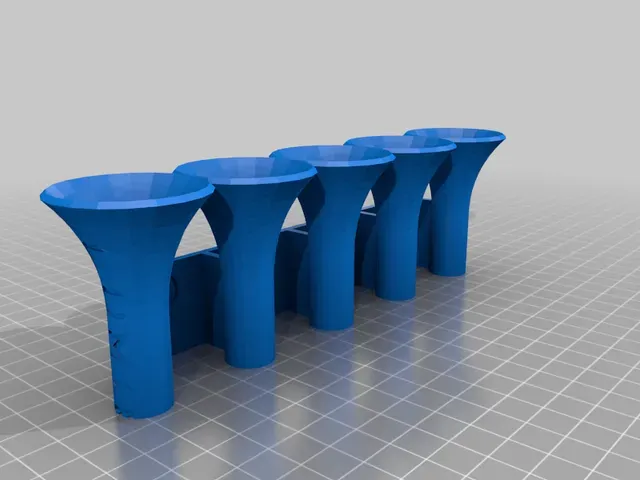

This is a remix from Frank Lumien's great design (on the right in first picture, remix is on the left). I had bigger screwdrivers than his biggest holder managed to fit in, so I edited his design to make it a little bigger one.

My own print of this failed a little bit (second pic), because filament wasn't cleanly rolled, but as only one funnel failed, it still filled my need. You don't need supports on this, but brim helps keeping this on bed. And remember to use quality filament and none of cheap crap like BQ that I used.

Screw holes fit Biltema pegboard, holes are 4mm wide and 12mm apart from each other and it is sold in Scandinavia, but there are other brands around the world with same diameters. You can also attach this to wall with wood screws.

This one takes 20 meters of filament (60 grams) and with 60mm/s speed, little over 6 hours to print.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

20%

Filament:

BQ PLA Orange

Category: Tool Holders & Boxes
