Biltema Pegboard Safety Glasses Holder

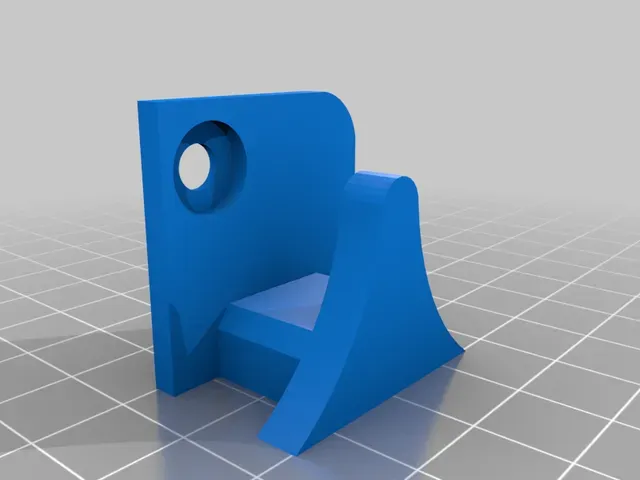

Simple holder for safety glasses, modified from James Purcell's thing to fit Biltema pegboard. Biltema pegboard holes are 4mm wide and 12mm abart from each other and it is sold in Scandinavia, but there are other brands around the world with same diameters.

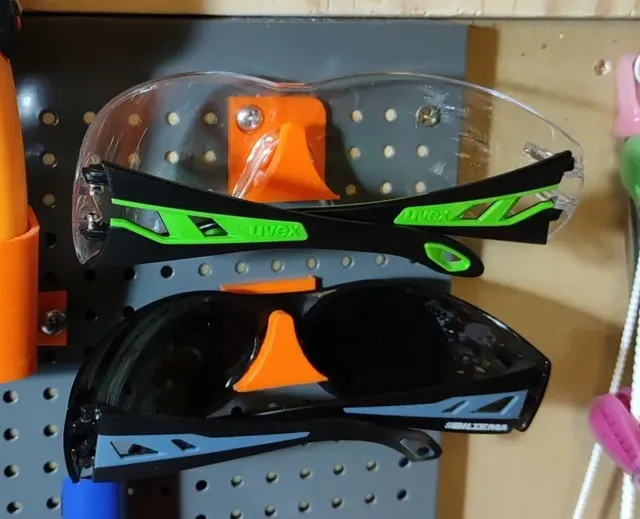

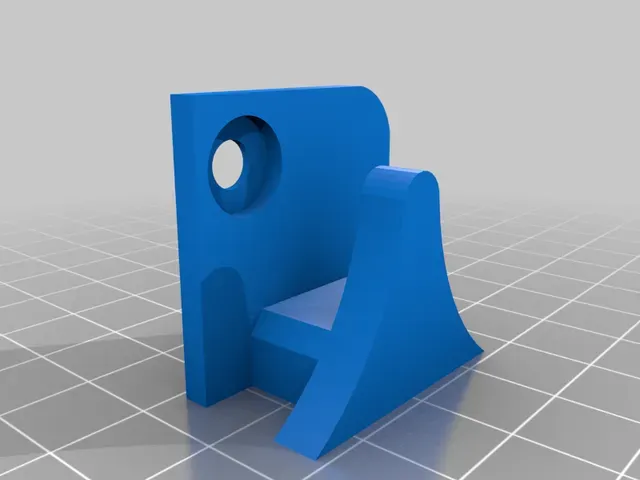

edit 8.6.2021 I upgraded to better safety glasses, which were also thicker on top of the nose, so I made bigger version of this. Old was fit 6mm thick nose part and the bigger version fits 12mm thick nose part, but that end up being too large for my new safety glasses, so I then made another version which has 9mm spacing, which did fit great.

These are all very fast prints and taking very little filament. All are under 2 meters (7 grams) and take about 35 minutes with 60mm/s print speed.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

10

Category: Tool Holders & Boxes
