Mxx TKL - Custom Mechanical Keyboard Case

Download the new version instead: https://www.printables.com/model/1011638-mxx-tkl-v11-custom-mechanical-keyboard

For this Keyboard you will need:

- A standard 88% pcb: Compatible pcbs include: H88c, Mechlovin' Infinity 87.5, Galatea, ApolloH Hotswap 88, other a.87 spacing f13 layout pcbs (may or may not work with usb mini pcbs cannot confirm)

Note: plate file provided as well as most plates on the market require north facing spacebar

- 7x M2.5x4mm screws for plate - 4x M3x8 button screws for ramp - 16x M3x10 button screws for ramp and case - Plate (3d printed or other TGR Jane v2 CE/ME plates) - Stabilizers (tx stabs recommended) - Mx compatible Switches - Mx compatible Keycaps - Bump-on feet (optional)

Note: Screw holes on bottom case have very little tolerance, you may have to use a deburring tool on the screw holes if you have elephant's foot (z height being too low and squishing the bottom)

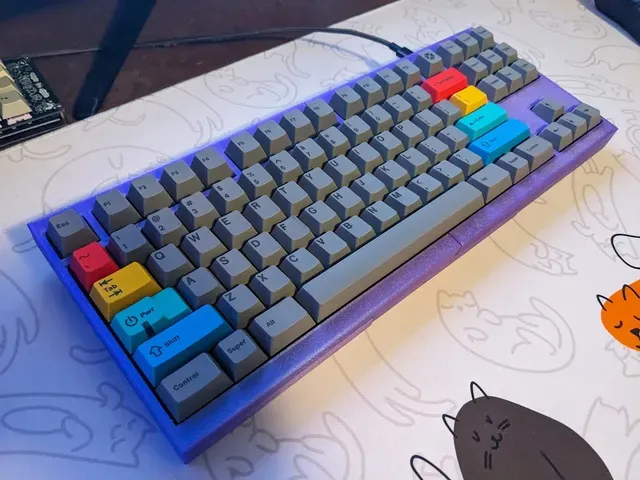

Configuration Shown:

- Flashforge Nebula Purple PLA - Overture Black PETG - PC plate - H88c North - OPBlacks Linears - GMK Dualshot 2 - TX stabs (Sound Test)
