Prusa MINI/MINI+ Squash Ball Feet System & Spool Holder

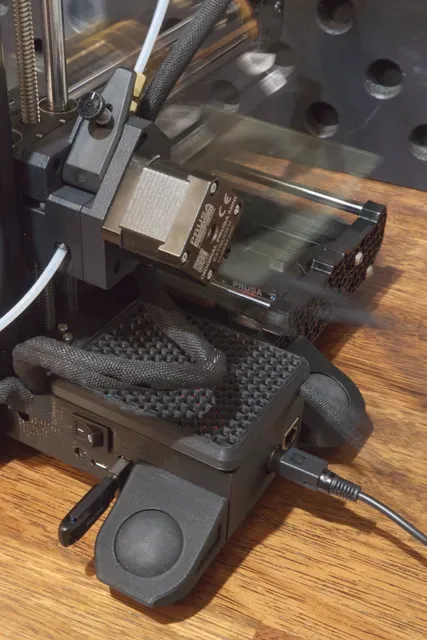

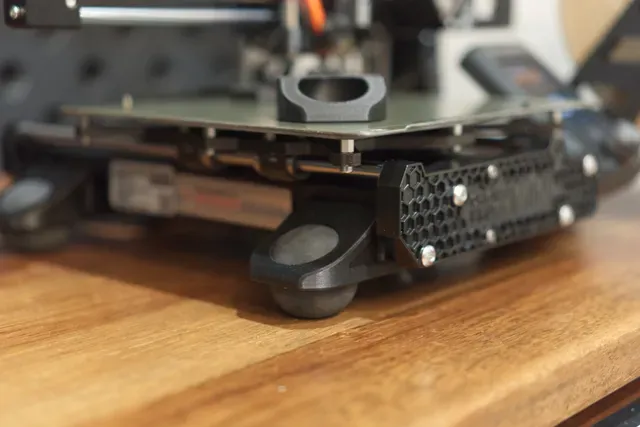

Remix of Squash ball feet for Prusa Mini. All brackets bolt into aluminum extrusions and support the electronic's box.

Highlights:

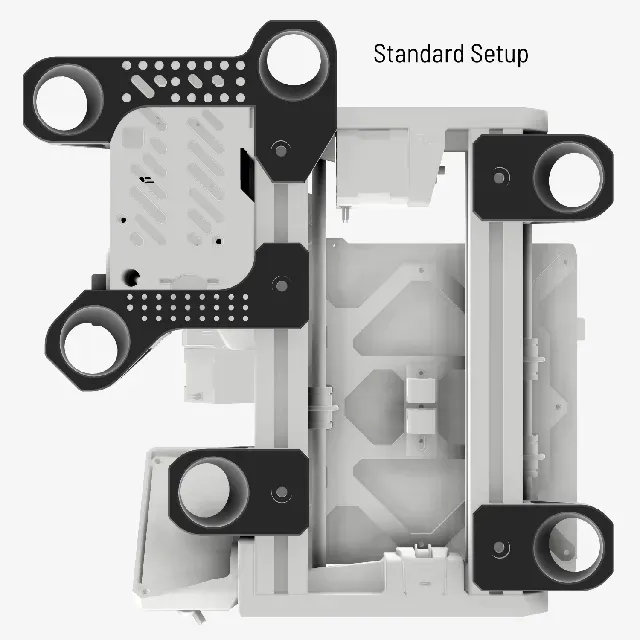

- Massive Noise Reduction - Improved Stability (Lifting the magnetic sheet won't tilt the printer) - 6 Support Points without increasing operational footprint.

This is inspired in https://www.thingiverse.com/thing:4752965 from jrjonescan, I love the weight distribution and support points choice. But it was too bulky, so I recreated the low profile from Vektor.

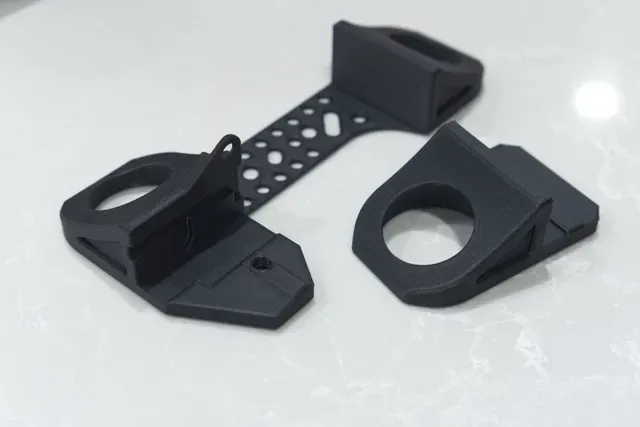

- Print 3x Single Foot (If you are going to use the Spool holder print only 2x) - 1x each other model You will need:

- 6x Squash Balls (double yellow dot) - 5x M6 x 12mm Bolts - 5x M6 T-Nuts - *If using the spool holder setup, you will also need: - 2x 608 bearings. Alternatively, you can reuse the originals from the mini Spool Holder. - 1x of the Original Prusa Mini Foam Feet (The spool holder includes a slot)

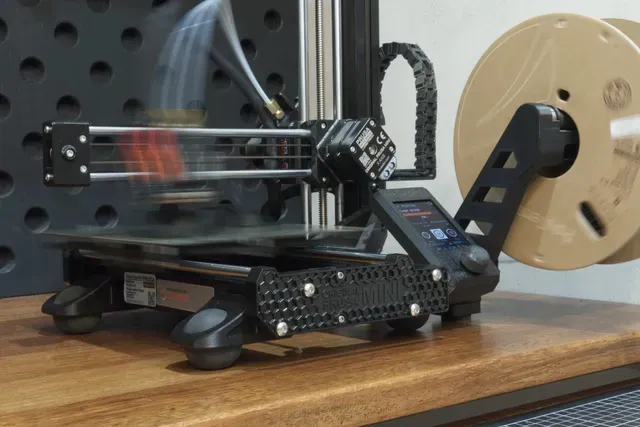

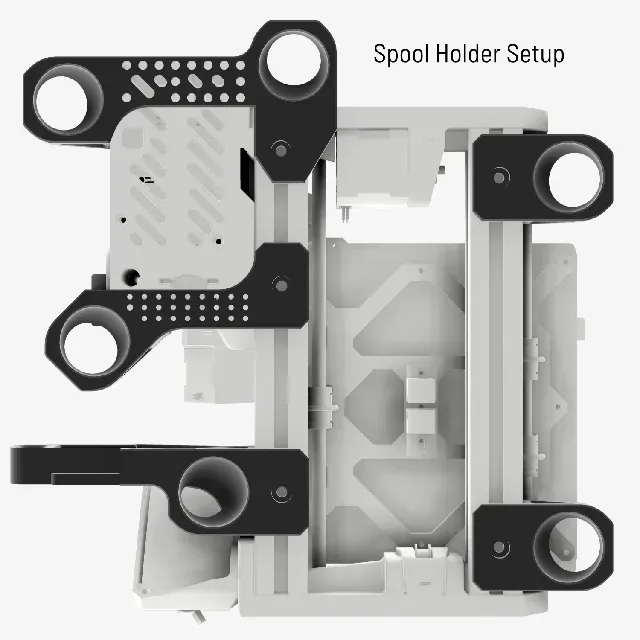

Spool Holder:

This is a remix of the popular Spool Holder from Max with the Squash Ball foot + the "Filler" Filament Roller.

Print instructions

- .25 layer - 3+ perimeters - ±30% infill - Minimal Support ( set overhang threshold to 5º, so supports is added only to critical areas) - PLA / PETG
