Voron StealthBurner Mount for Biqu / BTT MicroProbe

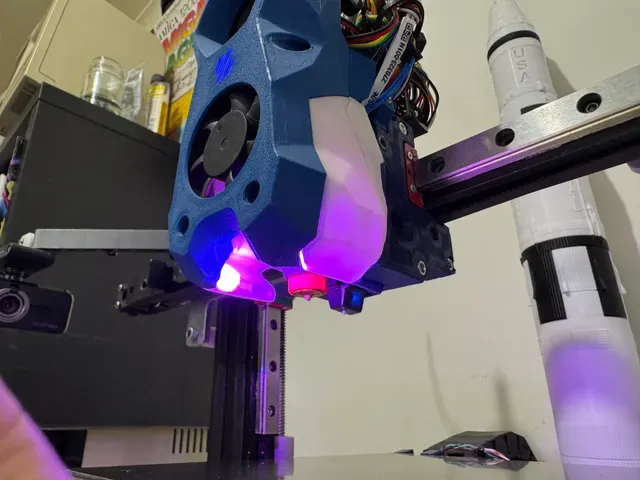

This Voron StealthBurner Mount for the Biqu / BTT MicroProbe is designed to allow the MicroProbe to be mounted in the same location is an inductive probe. As a result no X offset is needed and the probe is well protected in the event of a print head crash.

Compatibility:

- I've designed this to work in all the official Voron StealthBurner X carriage mounts, including my own Ender 3 / Mega Zero version . Instructions:

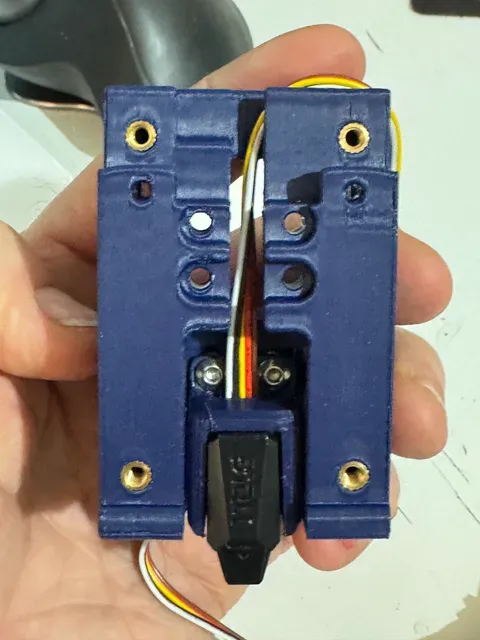

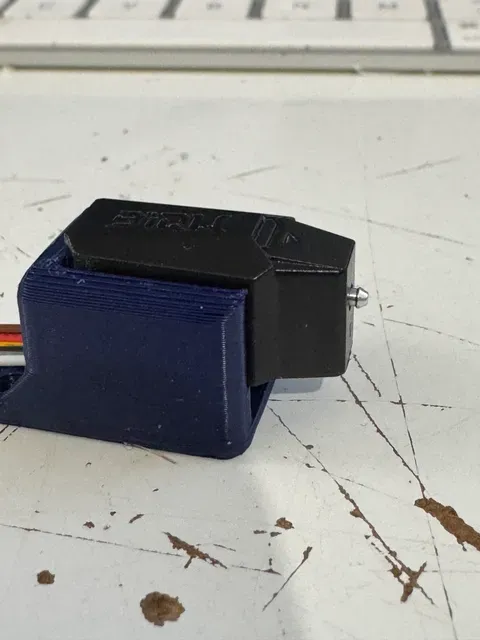

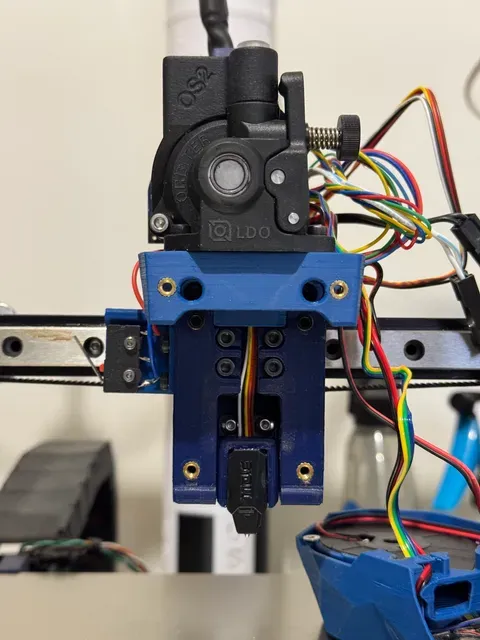

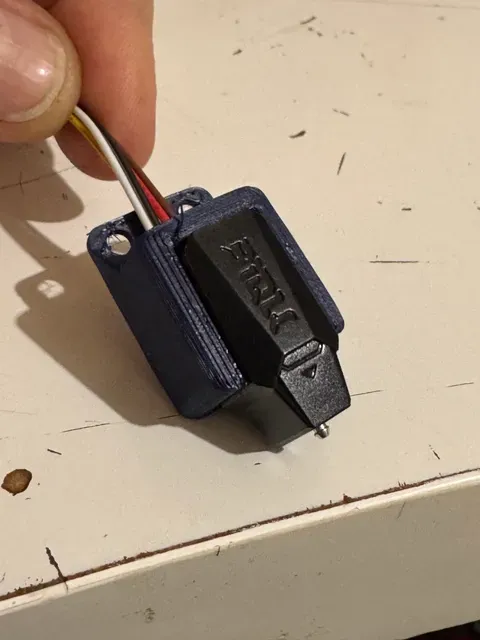

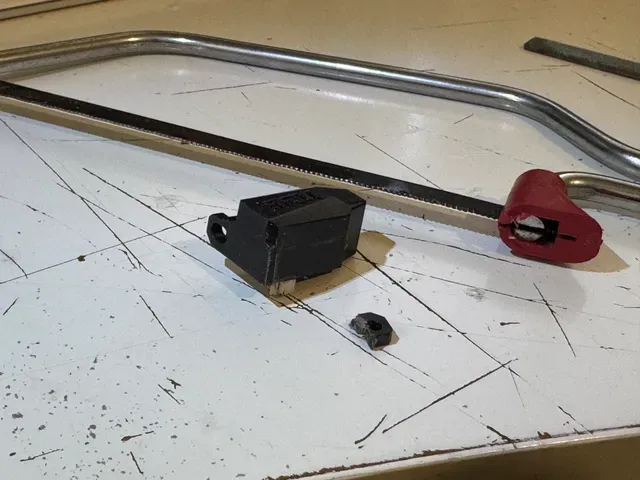

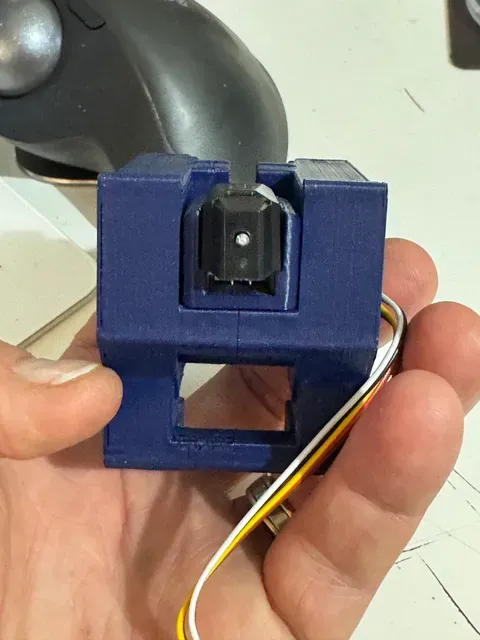

- Print both parts in ASA or ABS with the normal Voron settings for a 0.4mm Nozzle - As per the pics, remove the "Ears" from the MicroProbe. If you use care and a jigsaw blade, it will not damage it. Then file the sides flat. - While the MicroProbe is a press-fit into the mount, I recommend a dab of Super Glue on the top and sides of the probe to ensure it will stay in place when the parts all get warm. - Installation is essentially the same as the Inductive probe, as per pages 59-60 of the StealthBurner manual. - Make sure you use the short M3 Heat-Set nuts for the Probe Mount. - For Klipper users, I've included my probe_MicroProbe.cfg file as an example config Probe Off-sets:

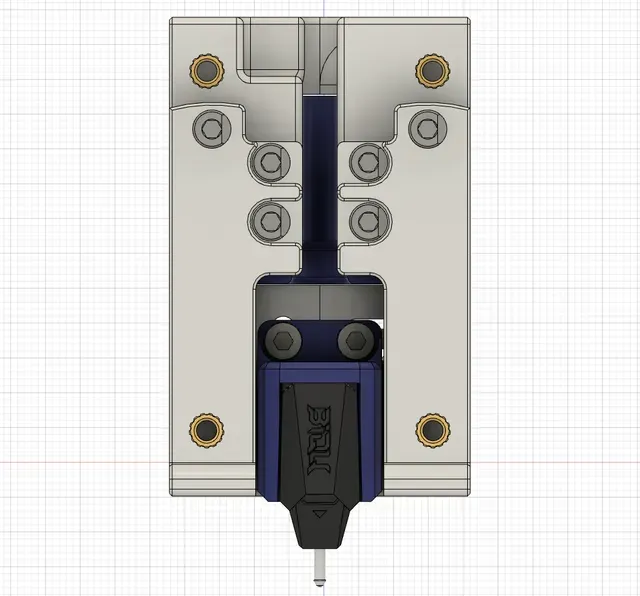

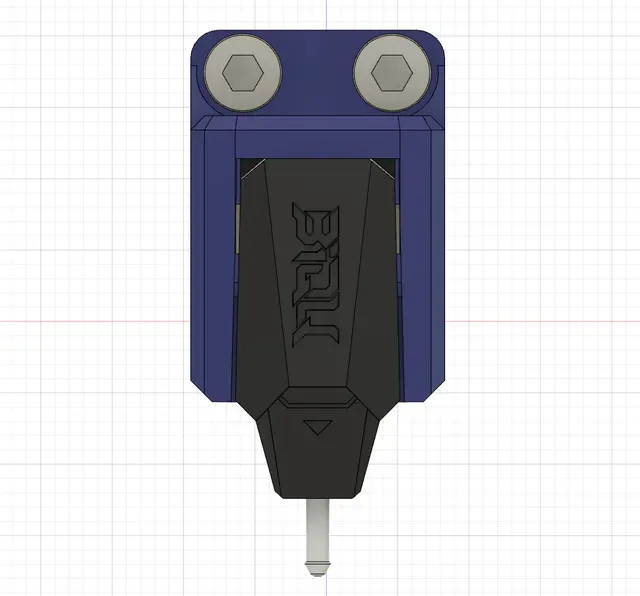

- X = 0 - Y = 20 CAD file has been included for remixing.
