Lenovo Legion Go Pro Buttons

I'm going through and CADing up all of the buttons from my Legion Go and decided to make some mods first.

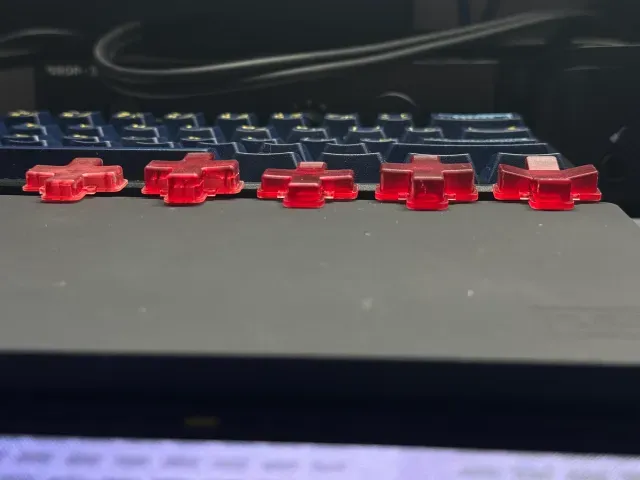

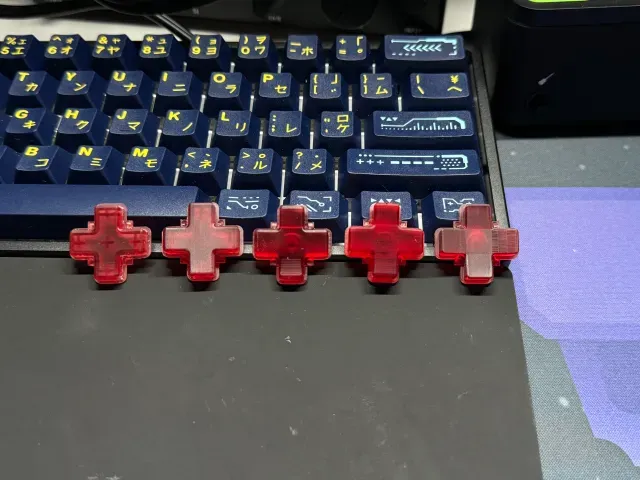

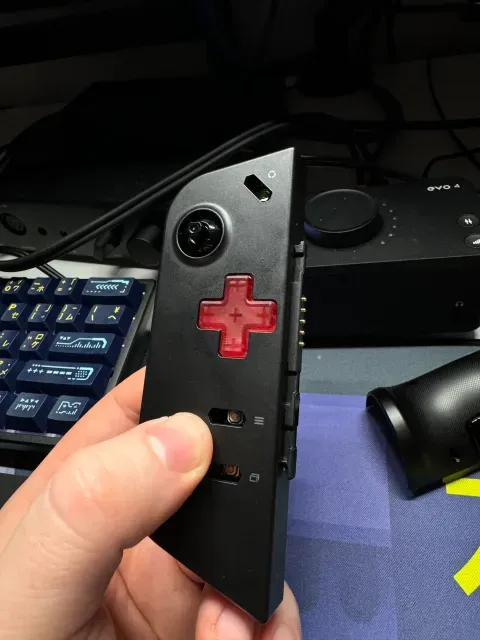

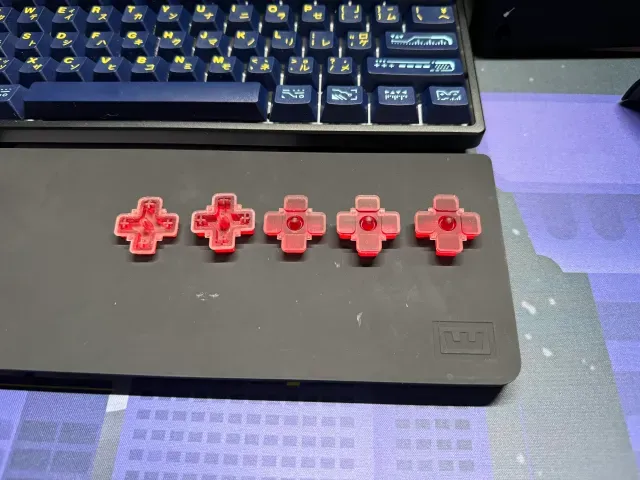

I’ve made the D-pad “Stock” in 1 and 2mm taller versions. Along with the D-pad “Pro” in 1 and 2mm taller versions as well. The Pro version has all the voids of the stock D-pad filled in and I’ve also gone and made the contact pad itself significantly larger. I wish words could convey just how much more satisfying the clicks now feel, given that the D-pad is completely solid with significantly more mass.

I also made a cheeky D-Pad Pro X-Box edition.

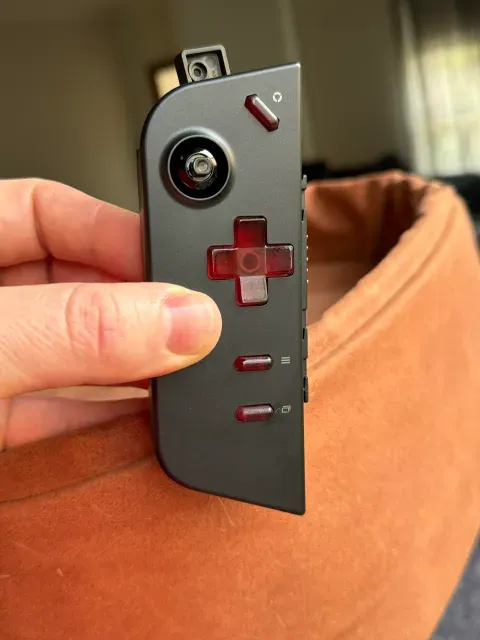

I've added in the Menu buttons as well. I made my own Curved version of the button which is 2mm taller than stock and much nicer to press.

These have been made with resin printing in mind and not FDM. You can try but I don't think it will work as well. I do plan to make a FDM friendly version but I'll need to do some testing first. If you can't print it in resin then I would suggest the likes of PCBWay to have them printed for you.

If you appreciate my work and wish to thank me, feel free to donate to my Ko-Fi

https://ko-fi.com/nazh_kofi

Changelog:

23/07/2024 - FDM Versions have been added. Print them at 0.1mm layer height for best results.

26/07/2024 - Added in Menu buttons.

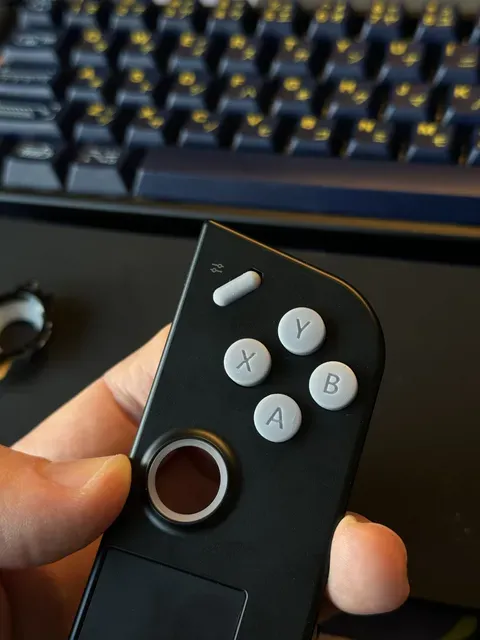

14/08/24 - ABXY buttons added. Variations also included, PlayStation and Inverted AB for Nintendo Enjoyers.

20/09/24 - ABXY buttons reworked in a few ways. Turns out the Nintendo A/B swap buttons never would have worked, One of them was rotated the wrong way - FIXED.

14/01/25 - Menu_Stock_Curved_1mm_Beta added. This is the version I'm using myself and forgot to add to this collection.

07/02/25 - Added in “DL” Deep Legends versions of the PlayStation buttons as requested.

- I also didn't realize just how much taller my version of the buttons were. They're 7mm in height and stock is actually 5.6mm. I have made 6mm versions of all the buttons as I haven't extensively tested the ABXY buttons to know if that extra height is an issue.

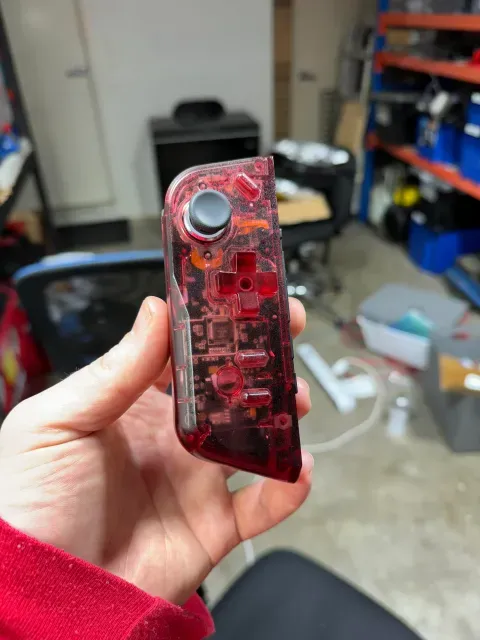

- Lastly, I've made some “hollow” buttons to closer reflect some of the Nintendo buttons. I made them for the purpose of clear resin casting but figure I may as well include them for all the button types should anyone want to experiment or having some cooler looking buttons if they go down the resin printed path. Updated pictures should help to explain what I mean.

Let me know if there is anything specific you might want made up and I'll do my best to add it to the current collection. They are freshly made ergo “Beta”. I've thrown them into my controller and they press and fit stock faceplate perfectly but as always, your kilometrage may vary.
