Customize Corner radius camfer jig with removable stoppers KIT

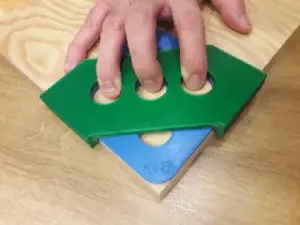

Note: Ignore the print defects visible in the photo. For test printing I use old low-quality plastic scraps.

STL models are given as an example.

If you download this before 2024-12-12 - Download the **radius.scad** file again

**Update 2024-12-12:**

- fix some bugs - refactoring code

**Update 2024-12-08:**

- fix some bugs - add text labels - add top/bottom chamfer

You can create two types of templates: - 4 different jig in corners; - 1 template for radius over 40 mm (outward and inward)

The following jig type can be set in each corner: - Rounded corner; - Chamfered corner; - Rounding inward corner - Rounded Elliptical corner; - Chamfered Beveled corner; - Rounding inward Elliptical corner

For the default parameters, fastening the stoppers with screws with an enlarged M3 head 8-12 mm long. For threading, I recommend using a hex head screw - as shown in the photo

This things can be made manually from plastic, plywood, etc. To do this, select Print_Type = 2D draw in the settings. Then export to PDF file. Print the drawing at 100% scale, stick it on the workpiece and cut out the things.

To use laser cutting/engraving, export 2D draw to the CAD file (DWG, SWG, OBJ etc.)
