Modular Desk Drawer | Push-Push Lock | Skadis

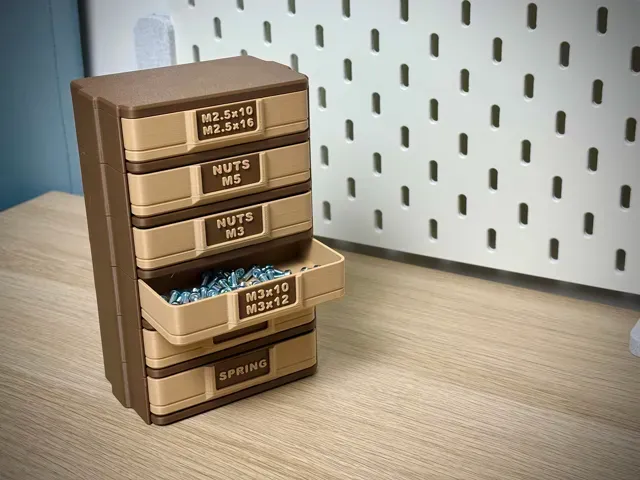

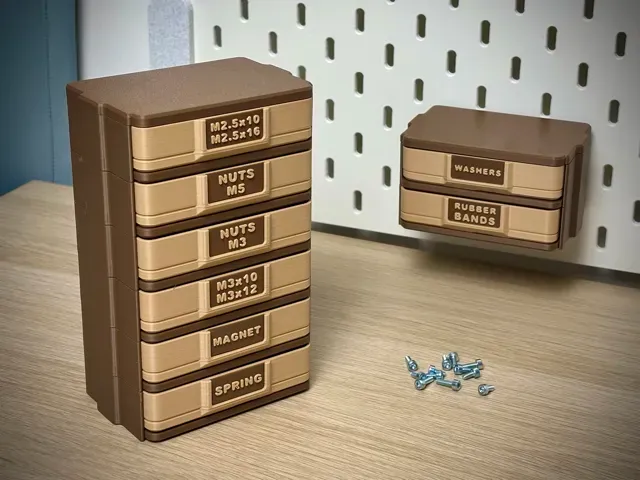

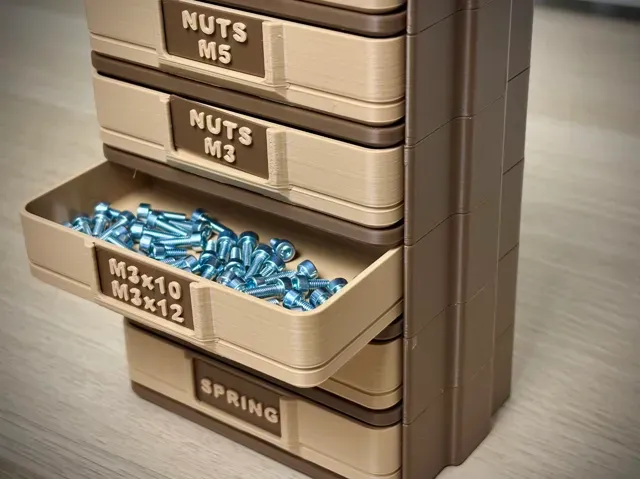

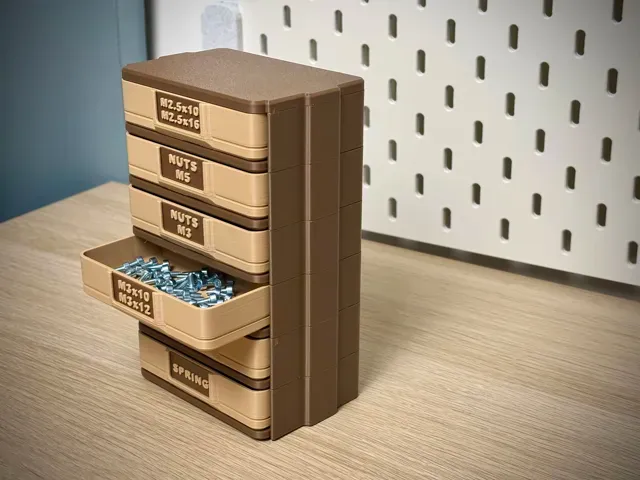

Modular Desk Drawer is a modular system with a clean rectangular design, perfect for organizing small tools, desk accessories, and everyday workspace essentials ✨. Thanks to the push-push locking mechanism , the drawers stay securely closed and won’t open by accident, while still opening effortlessly with a simple press 🔒. The system can be used freestanding on your desk or mounted to the IKEA Skadis , giving you full flexibility in how and where you use it.

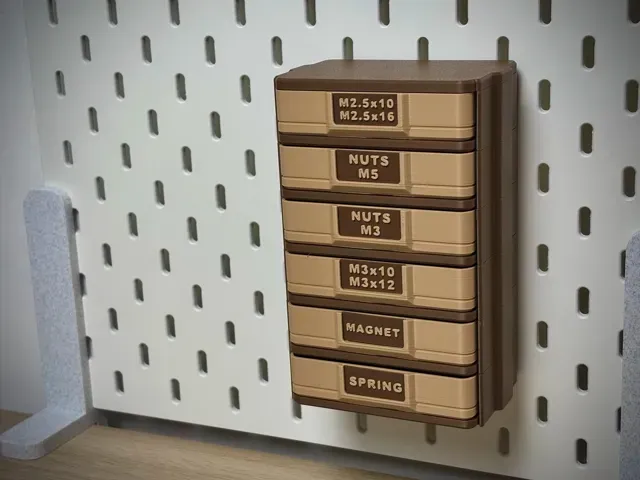

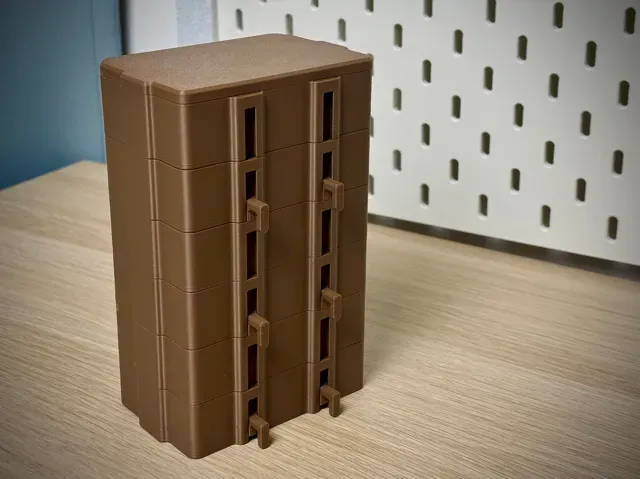

- Modular & stackable system — build the tower to any height you want 📐 - Internal drawer dimensions: 91 × 48 × 15 mm - Single tier dimensions: 99 × 61 × 25.7 mm - Easy stacking — tiers align using small alignment tabs that smoothly fit together - Push-push locking mechanism — opens and closes with a simple press 👉 - Top cover required — print 06_Lid to close the last tier neatly - Elastic band required: 1.4 × 40 mm ( 1.4 × 35 mm also works) - Simple assembly — all parts are fastened with screws 🪛 - Two box options: - 01_Box With Label - 01_Box Without Label - Custom label support — text can be easily added in the slicer; a blank label is included in the print profile 🏷️ - Skadis compatible — grooves in 02_Case allow insertion of 07_Skadis_Hook for mounting to IKEA Skadis. Place 07_Skadis_Hook on every second tier — specifically only on even-numbered tiers.

Position of Skadis Hook Assembly instruction step by step👉:

- Attach 03_Hook to 01_Box using screws, then place a 1.4 × 40 mm elastic band between the hooks.

- Insert 01_Box into 02_Case ⚠️ Important: Slightly lift the push-push pin while inserting the box. Make sure the pin does not bend as the box is pushed in. If bending occurs, gently bend the pin slightly to the left by hand so it can slide smoothly along the guide.

- - Insert 04_Stop into 02_Case and secure it with 2× 05_Screw . That’s it! ✅ Repeat this process for the desired number of tiers , and place 06_Lid on the top tier to finish the assembly.
