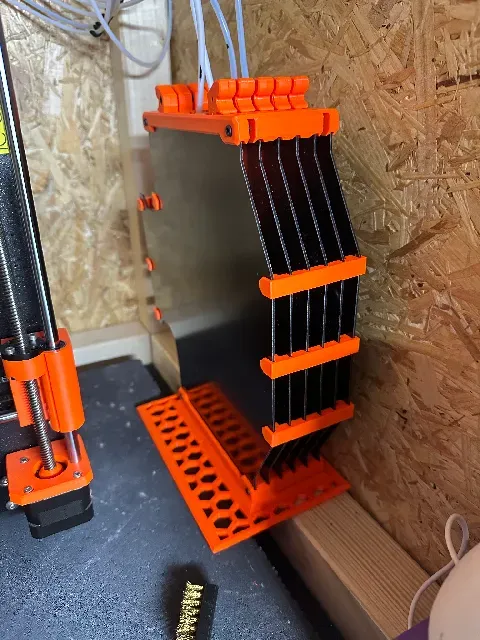

Top Loading Buffer Base for MMU - Make it your size

Cause i have no problems with my MMU2S System, but i really hate the old Prusa Buffer, i decided to upgrade only the Buffer. But for my enclosure i need top loading, cause my filament spools hanging right over the printer.

I grab my CAD and simply rework the new Prusa Buffer.

Material List for this built:

- printed parts from Original needed: - 5x Wheel - 10x Segment - 1x Segmenter - 6-7x Plate Holder (to close all possible traps for the Filament) - PTFE Clip (as much as you want or need) - this part here with a base that fit to your measurements - 8x M3x30mm cylindric Screws - 8x M3ns Nuts (took my out of the spare bag of the printer) - 15x M3 Hex Nuts - 25x M3x6mm cylindric Screws - 10x Heatsink Collet for E3D Hotend (if u have time: use Ali Baba, i used this: https://www.prusa3d.com/de/produkt/heatsink-collet-e3d/ ) - 5x Buffer plates from the MMU Buffer or print you stable separations - 10x PTFE Tube in the length that you need - 5x 693 2RS Bearings - Shaft 2.9mmx8.5mm (cut mine from 2,9 mm DIY Steel) recommended Print Settings:

- choose if u want to print the print ready or scalable variant and download it - if u want to scale the Base only scale in x- or y- axis - 0,2 Layer - Quality Profile (Prusa Slicer) - 15% Infill - PETG, ABS etc no PLA Construction:

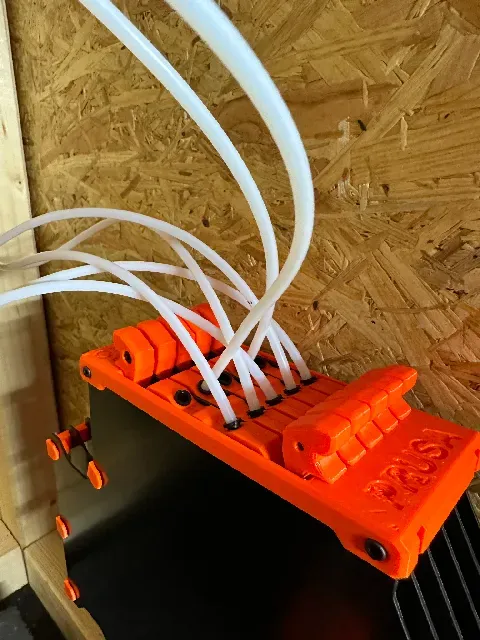

- Put the Segment together ( https://help.prusa3d.com/guide/7-cassette-buffer-assembly_381796 Step 11-16) - Install the Segmenter as seen in Step 5 - Install the Base on the opposite side of the Buffer with 4x M3x30 and 4x M3ns nuts - Install plate Holder like in this picture - Connect your PTFE Tubes - My Filament-Spools sitting over my printer. Cause of that I choose the following connection - Incoming Filament from the Spools - Outgoing Filament tube to the MMU Happy Printing with your new Top Loading Buffer. :)

Have an Eye on my other models and leave me a like or a comment.

Yours Scab
