Mitutoyo Micrometer Battery Cover

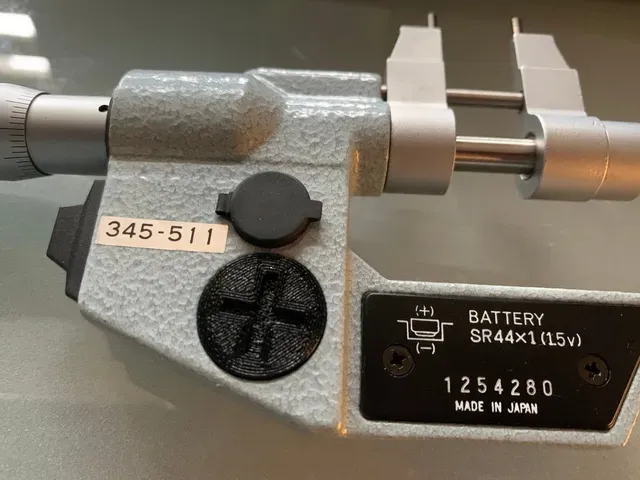

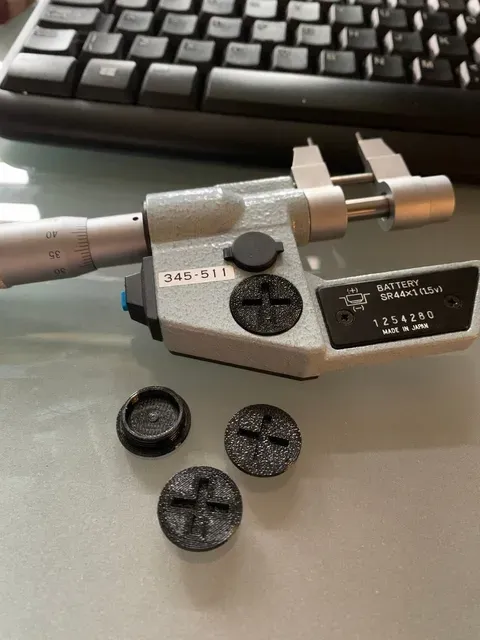

Replacement Mitutoyo micrometer battery cover. All of my digital micrometers where purchased second hand of eBay, and they all had chewed up covers to their battery compartments.

This is modelled after what I believe is the most recent version of the actual Mitutoyo part.

Dimensions are 17.6mm diameter, M15x1 thread with a height of 4.85mm

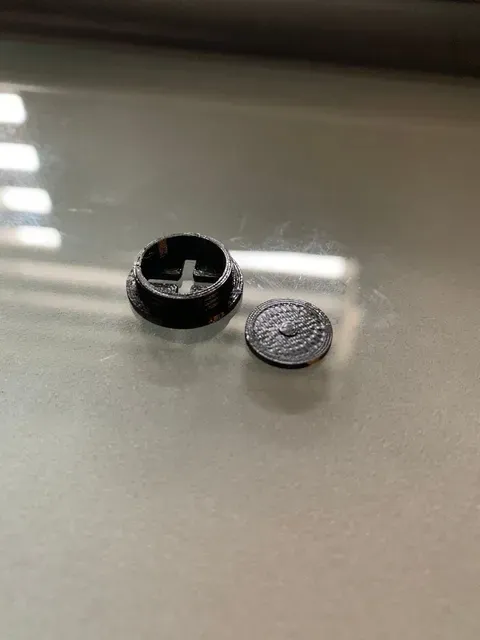

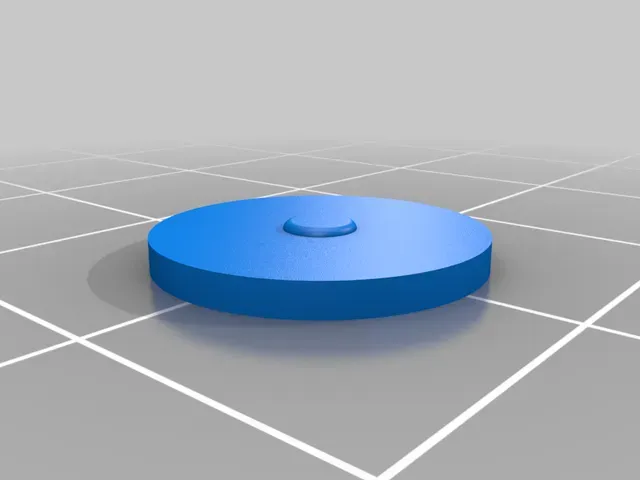

It's printed in two parts - the insert snaps into the main body, pip side up.

Print instructions

Category: Hand Tools Summary

Replacement Mitutoyo micrometer battery cover. All of my digital micrometers where purchased second hand of eBay, and they all had chewed up covers to their battery compartments.

This is modelled after what I believe is the most recent version of the actual Mitutoyo part.

Dimensions are 17.6mm diameter, M15x1 thread with a height of 4.85mm

It's printed in two parts - the insert snaps into the main body, pip side up.

Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

</div> Supports:

No

Resolution: 0.2

</div> Infill:

10%

Filament: Real Filament PETG Black Notes:

Printed with the Pretty PETG v3 (7x7) profile.

Post-Printing

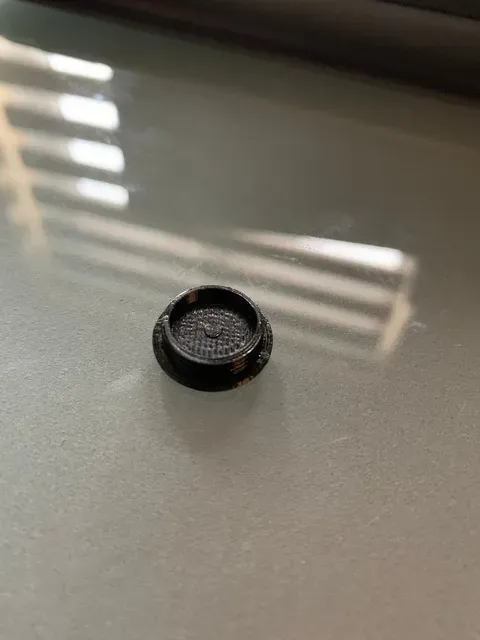

Push the insert into the main cap, pip side up. Friction fit, no need for glue.
