P1S Camera Arm with Universal Webcam Mount

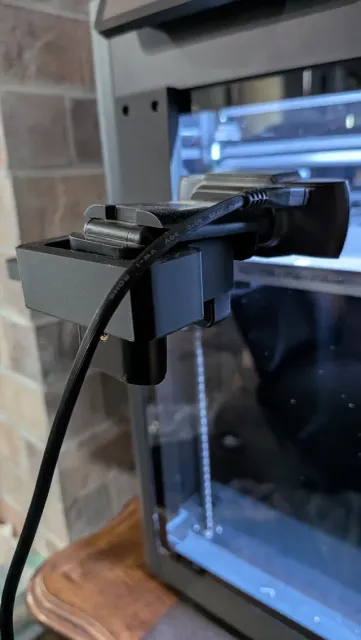

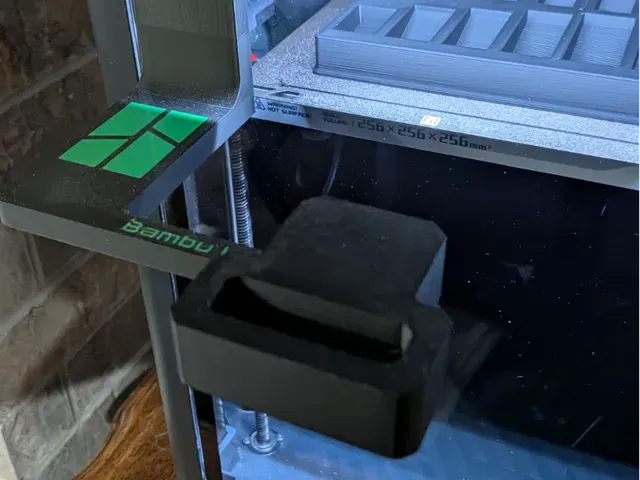

Boost Me If you find this model helpful, a boost would be helpful to me and would be much appreciated.  This is a remix of the P1S Generic Camera Arm [2025-02-14 - V2 Update] by dirken. I added a "universal" camera mount to the original design so that I did not have to disassemble my webcam or use magnets. This mount has a hole in it so that you can slip the webcam mounting clip through it. The webcam just rests on the base. This was designed with a more spacing than the Logitech C270 or Brio 101 needs to mount, so it should fit most webcam mounting clips, though if the clip is too wide or thick, it may have issues. The mounting instructions are the same as the original design, but I left them in here for reference:

Mount Installation Instructions

What you will need:

- Two M3x8 screws - The mount printed in PLA (or whatever other material)

- Unscrew the left door hinge screw from the P1S (note: these screws are very tiny, you can't re-use them but keep them safe if you need them in the future!) - Then screw in the mount on the left door hinge with one M3x8 screw (at this point the mount should be attached in ~45° angle). Make sure it's firmly attached but make sure you can still slide the mount left and right so in #4 you can still move into position! - Unscrew the second door hinge screw form the P1S (note: same here, guard the tiny screw for future use / restore) - Now turn the mount so that it covers the second screw hole and screw in the second M3x8 screw. - Now make sure that both screws are tight but do not overtighten them to not break the mount AND to not break the glass / door / hinge!
