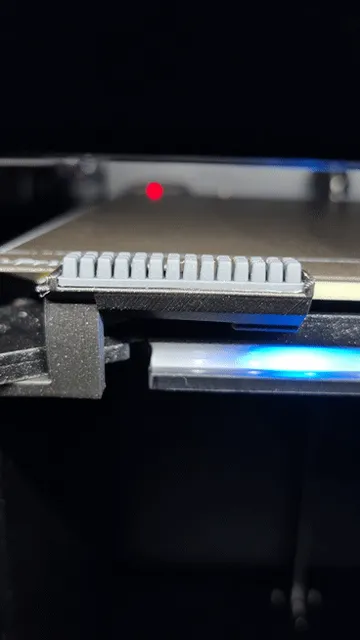

Prusa Core One nozzle Wiper v2

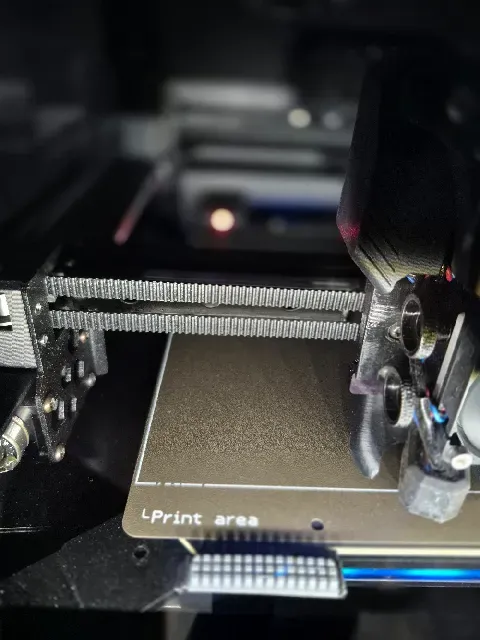

I designed v2 because the Printhead touched the wiper while auto bed leveling when used the outer borders of the printbed in v1 .

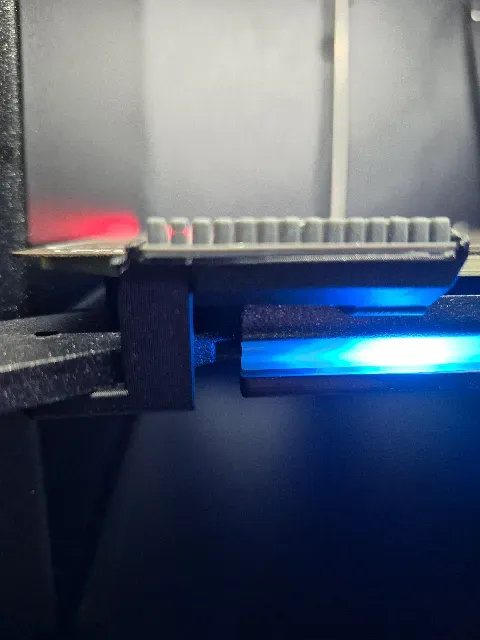

Because of its size you can see everything of your status-LED-stripe.

I printed it in ABS for stability and temperature insensitivity.

printed with supports

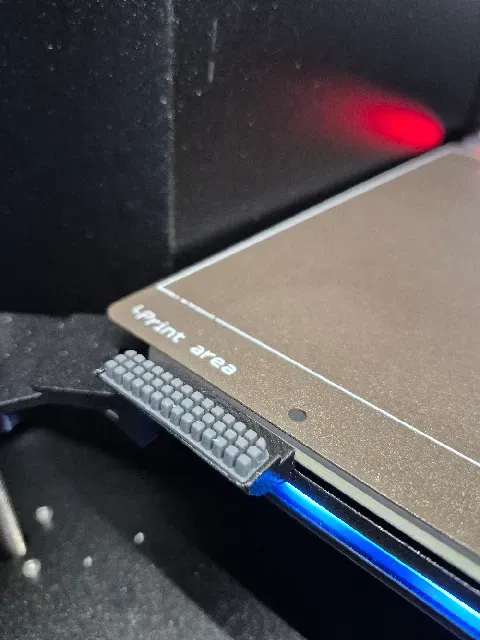

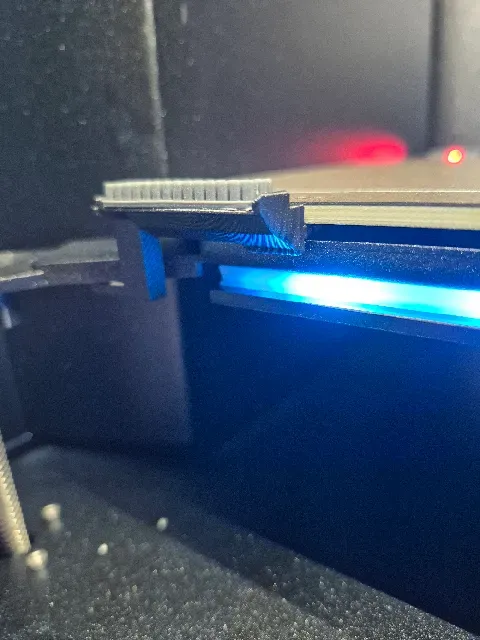

snug fit - slide it in from right to left - you can use an M3 screw and nut

gcode as the end block after the purge line (M221 S100 ; set flow to 100%)

V2: ; ----NOZZE WIPE---- G0 X20 Y-18 Z2 F5000 G0 X70 Y-18.5 Z3 F5000 G0 X20 Y-19 Z2 G0 X70 Y-19.5 Z3 G0 X20 Y-20 Z2 G0 X70 Y-20 Z3

V1: ; ----NOZZLE WIPE---- G0 X20 Y-12.5 Z2 F2000 G0 X70 Y-13 Z4 F2000 G0 X20 Y-13.5 Z3 G0 X70 Y-14 Z4 G0 X20 Y-14.5 Z3 G0 X70 Y-15 Z4
