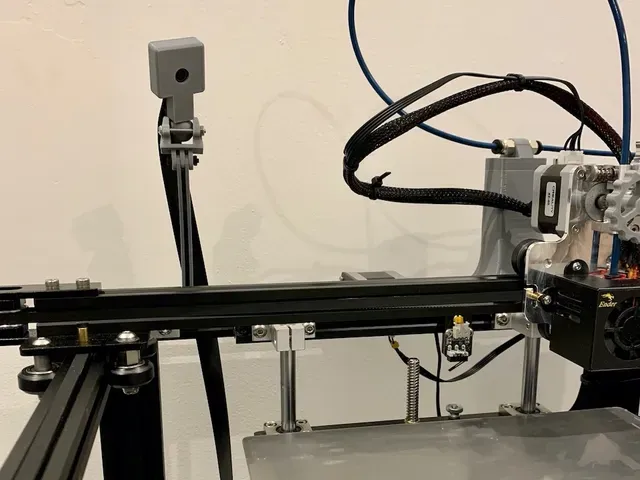

Ender 5 Raspberry Pi v2.1 v-slot extrusion clip-on camera mount

I wanted an easy way to mount a Raspberry Pi v2.1 camera on my Ender 5 Pro.

Some of the existing designs were quite nice, but their mounting mechanisms were very heavy duty for the light weight Pi camera module, which also limited their placement.

I was inspired by a comment by JonathanMurray and decided to remix my Monoprice Mini Select v2 camera design with the clip from the Ender 5 Light Mount by byxqqqqme.

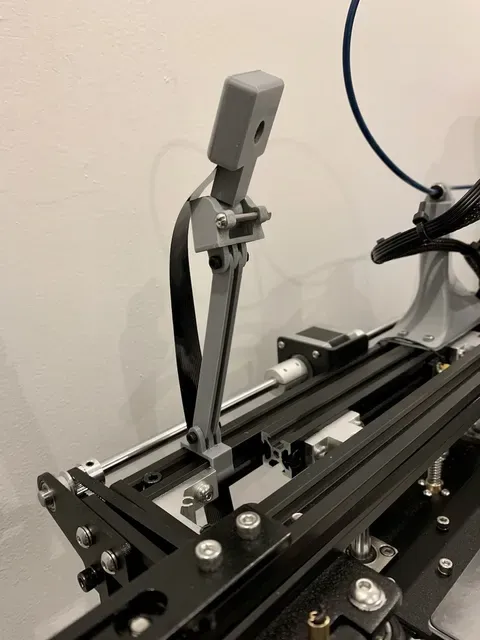

While this was designed with an Ender 5 in mind, it should work with anything that uses 2020 v-slot extrusions.

As with my Monoprice design:

- I took inspiration from willywidget's Raspberry Pi Camera Case with its bottom-back exit for the ribbon cable.

- I really liked monkeylabs' Ball Joint with Tension screw but the design was not manifold, so I repaired it.

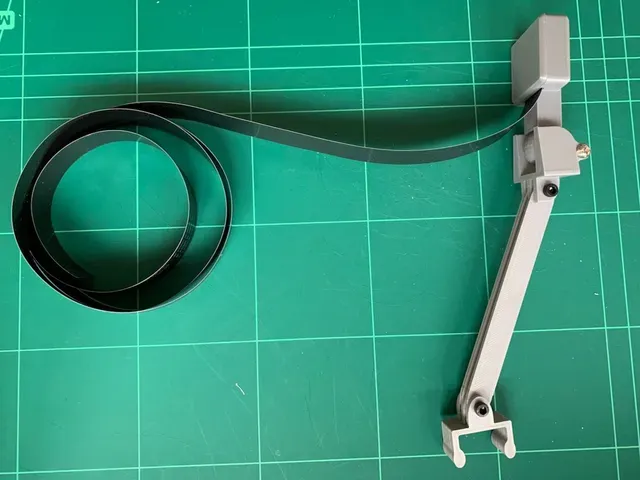

You will also need to print:

- the ball joint (BallJoint.stl) from 3dkarma's design

- two links from 3dkarma's design of your desired length

You will also need a couple of M3 screws:

- 2 x M3 15-16mm screws and nuts for the links

- 1 x M3 25mm screw and nut for the ball joint holder

I have included Fusion 360 files for all the items I designed, remixed or repaired for those that wish to tinker.

Enjoy! Print Settings ==============

Printer Brand:

Creality

Printer: Ender 5

Rafts:

No

Supports: Yes

Resolution:

0.20

Infill: 20-25%

Filament: eSun PLA+ Silver

Notes:

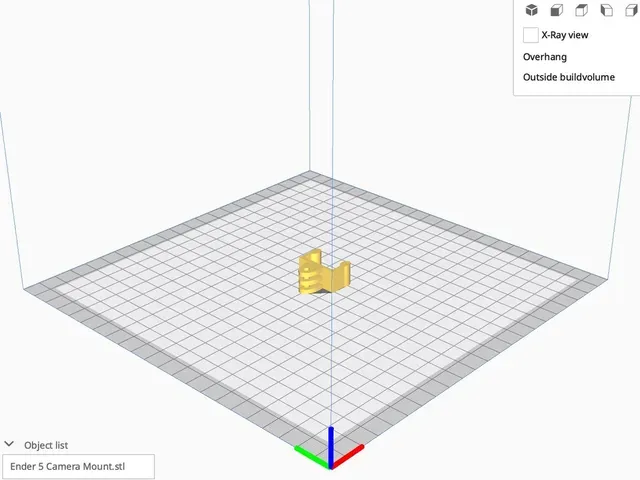

The v-slot extrusion clip should be printed on its side and will require supports. The rest should print without supports.
